KMJ Performance |
Big
Block (BB) Chevrolet Professional Products Power+Plus Intake Manifolds |
||
BB Chevrolet V8 w/Oval Ports |
||

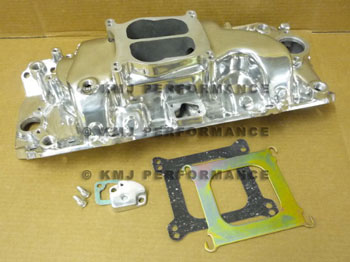

This
excellent street performance intake manifold is a popular stock replacement/street
legal part for 396, 402, 427 and
454 V8's with OEM 4-bbl carb; 1965 -'72 (1973
non-CA) passenger cars and 1966 -'83 trucks, Suburbans and
heavy
vehicles, except stock equipped EGR. This BB Chevrolet kit includes
nitrous bosses, dual distributor hold downs, four corner water ports
and a special carb adapter to use with aftermarket
square bore carburetors. However, please take note, this intake manifold will
not be able to fit under any Corvette
hood without hood
modifications. |
||
Part
# |
Application |
|
PCE
PC3000 |
Big
Block Chevy V8 w/oval ports - Polished Finish |
|
PCE PC3001 | Big Block Chevy V8 w/oval ports - Satin Finish |
BB Chevrolet V8 w/Oval Ports |
||

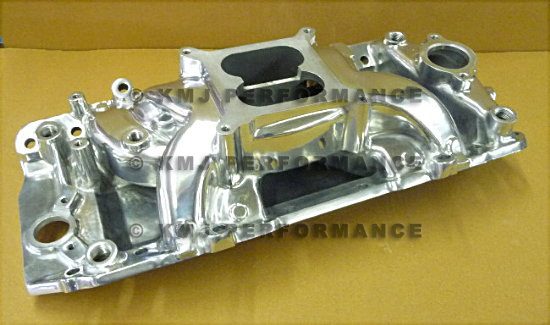

This
is our best selling manifold for big block Chevrolet engines. It is a
wind manifold, commonly referred to as an air gap style design, and is
now
available for big block Chevy engines with oval ports. The open area
under the plenum chamber allows ambient air to provide additional
cooling to the intake charge, which produces additional power. This
extra space also helps isolate the upper part of the manifold from the
transference of engine heat. Like many of our manifolds, this model
features nitrous bosses, four corner water ports and dual distributor
hold downs. |
||
Part
# |
Application |
|
PCE PC3025 |
Big Block Chevy V8 w/oval ports - Polished Finish | |
PCE PC3026 | Big Block Chevy V8 w/oval ports - Satin Finish |
BB Chevrolet V8 w/Rectangular Ports |
||

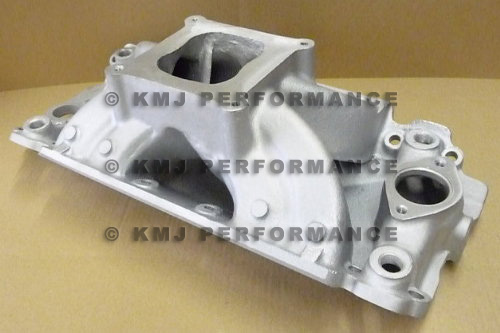

This
is a very affordable intake manifold that makes outstanding power and torque.
It is primarily best when used on big block engines in the 396, 427,
454
displacement area producing power in the 600 to 700 horsepower range.
This BB design features large rectangular ports (1.63" x 2.25") along with
nitrous bosses, four corner water ports as well as dual distributor hold
downs.
Use with the Professional Products Power+Plus Intake Gasket #53601. |
||
Part
# |
Application |
|
PCE PC3030 | Big Block Chevy V8 - Polished Finish | |
PCE PC3031 | Big Block Chevy V8 - Satin Finish |
BB Chevrolet V8 w/Oval Ports |
||

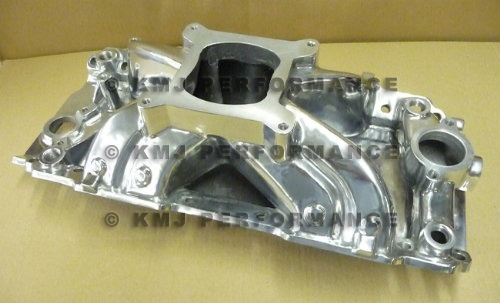

This
intake manifold is basically the same as the manifold mentioned above (# 53030 / 53031)
except that it has oval ports instead
of rectangular ports. The design features four corner water ports, dual
distributor hold downs and nitrous bosses. This is a proven big block manifold design that, when used in the right engine combination, produces outstanding torque and horsepower. It works best on engines with displacement in the 396 to 454 range, producing 600 to 700 in horsepower. |
||
Part
# |
Application |
|
PCE PC3036 |
Big Block Chevy V8 w/oval ports - Polished Finish |
|
A |
BB Chevrolet V8 w/Rectangular Ports |
||

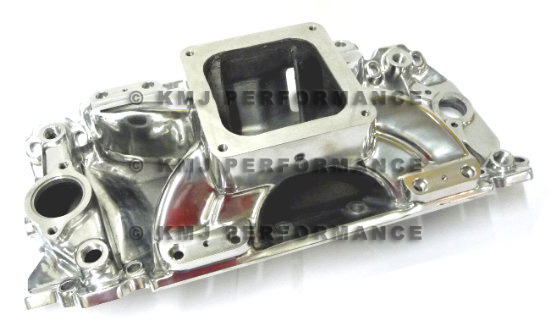

This
intake manifold is very similar in design to our 53030/53031 model except it
has
a carb flange that accommodates a Dominator (4500) type carburetor.
This model also has pads on the ports that can be drilled and tapped
for nitrous nozzles, or it's available from Professional Products
machined for injector nozzles. Use the Professional Products Complete
Fuel Rail Kit #10626 along with this manifold. |
||
Part
# |
Application |
|
PCE PC3032 | Big Block Chevy V8 w/rectangular ports - Polished Finish | |
PCE PC3033 | Big Block Chevy V8 w/rectangular ports - Satin Finish |
