Race Pro
RACING RADIATORS
Featuring Northern Cooling Technology
  • Up to 24% improvement in heat transfer over other brand's of racing radiators!
  • Epoxy free construction - Nothing to crack, chip or leak!
  • Extra heavy reinforced die stamped tanks for added rigidity.
  • Billet machined filler neck for better pressure control.
  • Highly louvered cooling fins exclusively designed for high performance heat dissipation.
  • All welded construction - No Gaskets!
  • Available with high performance aluminum 7 plate engine oil cooler.
  • 2 rows of 1" high capacity cooling tubes.
  • Heavy wall inlet & outlet fittings for secure hose connection.
  • Designed to cool racing engines.


19" Race Pro RADIATORS

19" CHEVY/GM RACE PRO

Part #
Application
Fits Area
 Engine Driven
Fan Shroud
 Electric Fan  &
Shroud Kit
NOR 209674
 Chevy/GM
 22" x 19"
 Z40020
 Z40073**
NOR 209642
 Chevy/GM 24" x 19"
 Z40024 Z41035**
NOR 209675
 Chevy/GM 26" x 19" Z40021 Z40074**
NOR  209676
 Chevy/GM 28" x 19" Z40022 Z40002**
NOR 209677
 Chevy/GM 31" x 19" Z40023 Z40003**
NOR 209608
 Chevy/GM w/Trans. Oil Cooler
 28" x 19" Z40022 Z40002**

Inlet is 1 1/2" and the Outlet is 1 3/4" for All Applications
**Electric fan shrouds may require a wiring harness and thermostatic control switch for correct operation.
(For tech support call 515-733-2890)
 http://www.kmjent.com/images/NOR/NOR209644.jpg

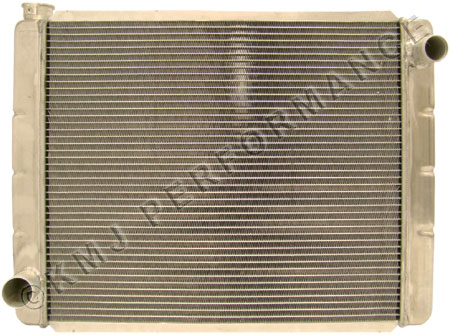

19" FORD/MOPAR RACE PRO


Part #
Application
Fits Area		 Engine Driven
Fan Shroud		 Electric Fan  &
Shroud Kit
NOR 209670 Ford/Mopar
 22" x 19" Z40020 Z40073**
NOR 209643 Ford/Mopar 24" x 19" Z40024 Z41035**
NOR 209671 Ford/Mopar 26" x 19" Z40021 Z40074**
NOR 209672 Ford/Mopar 28" x 19" Z40022 Z40002**
NOR 209673 Ford/Mopar 31" x 19" Z40023 Z40003**
NOR 209609 Ford/Mopar w/Trans. Oil Cooler
 28" x 19" Z40022 Z40002**

Inlet is 1 1/2" and the Outlet is 1 3/4" for All Applications
**Electric fan shrouds may require a wiring harness and thermostatic control switch for correct operation.
(For tech support call 515-733-2890)
 http://www.kmjent.com/images/NOR/NOR209670.jpg

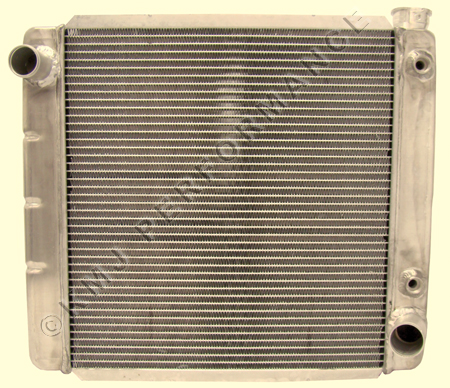

19" RACE PRO W/ENGINE OIL COOLER


Part #
Application
Fits Area		 Engine Driven
Fan Shroud		 Electric Fan  &
Shroud Kit
NOR 209612 Chevy/GM
 22" x 19" Z40020 Z40073**
NOR 209613 Chevy/GM 26" x 19" Z40021 Z40074**
NOR 209614 Chevy/GM 28" x 19" Z40022 Z40002**
NOR 209652 Chevy/GM - w/#16 AN Inlet Connection 28" x 19" Z40022 Z40002**
NOR 209615 Chevy/GM 31" x 19" Z40023 Z40003**
NOR 209616 Ford/Mopar
 22" x 19" Z40020 Z40073**
NOR 209617 Ford/Mopar 26" x 19" Z40021 Z40074**
NOR 209618 Ford/Mopar 28" x 19" Z40022 Z40002**
NOR 209619 Ford/Mopar 31" x 19" Z40023 Z40003**

**Electric fan shrouds may require a wiring harness and thermostatic control switch for correct operation.
(For tech support call 515-733-2890)
 http://www.kmjent.com/images/NOR/NOR209612.jpg

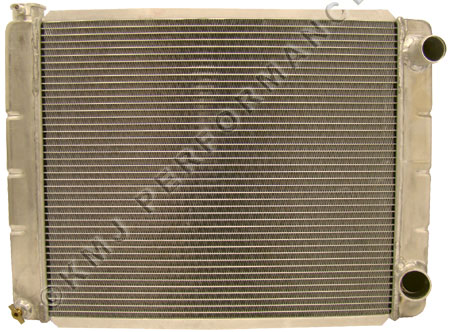

19" GM DOUBLE PASS RIGHT CONNECTIONS


Part #
Application
Fits Area		 Engine Driven
Fan Shroud		 Electric Fan  &
Shroud Kit
NOR 209633
 Inlet/Outlet on Right
 24" x 19"
 Z40024
 Z41035**
NOR 209635 Inlet/Outlet on Right 26" x 19" Z40021 Z40074**
NOR 209624 Inlet/Outlet on Right 28" x 19" Z40022 Z40002**
NOR 209626 Inlet/Outlet on Right 31" x 19" Z40023 Z40003**

**Electric fan shrouds may require a wiring harness and thermostatic control switch for correct operation.
(For tech support call 515-733-2890)
 http://www.kmjent.com/images/NOR/NOR209635.jpg

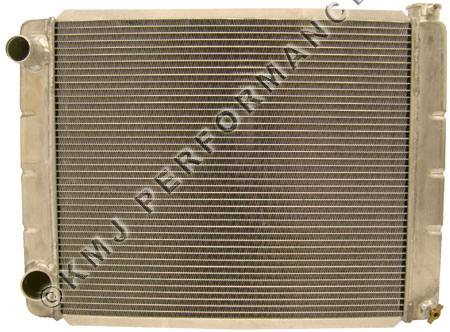

19" FORD/MOPAR DOUBLE PASS LEFT CONNECTIONS


Part #
Application
Fits Area		 Engine Driven
Fan Shroud		 Electric Fan  &
Shroud Kit
NOR 209634 Inlet/Outlet on Left
 24" x 19" Z40024 Z41035**
NOR 209636 Inlet/Outlet on Left 26" x 19" Z40021 Z40074**
NOR 209625 Inlet/Outlet on Left 28" x 19" Z40022 Z40002**
NOR 209627 Inlet/Outlet on Left 31" x 19" Z40023 Z40003**

**Electric fan shrouds may require a wiring harness and thermostatic control switch for correct operation.
(For tech support call 515-733-2890)
 http://www.kmjent.com/images/NOR/NOR209634.jpg

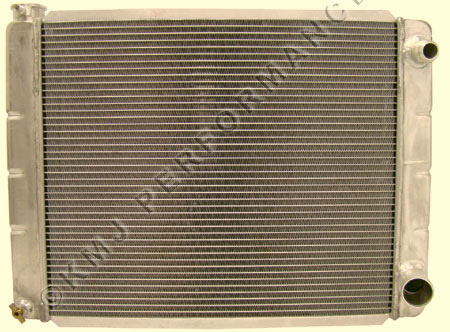

19" DOUBLE PASS AN-16 INLET FITTING


Part #
Application
Fits Area		 Engine Driven
Fan Shroud		 Electric Fan  &
Shroud Kit
NOR 209638 Inlet/Outlet on Right 28" x 19" Z40022 Z40002**
NOR 209640 Inlet/Outlet on Right 31" x 19" Z40023 Z40003**
NOR 209639 Inlet/Outlet on Left 28" x 19" Z40022 Z40002**
NOR 209641 Inlet/Outlet on Left 31" x 19" Z40023 Z40003**

**Electric fan shrouds may require a wiring harness and thermostatic control switch for correct operation.
(For tech support call 515-733-2890)
 http://www.kmjent.com/images/NOR/NOR209638.jpg

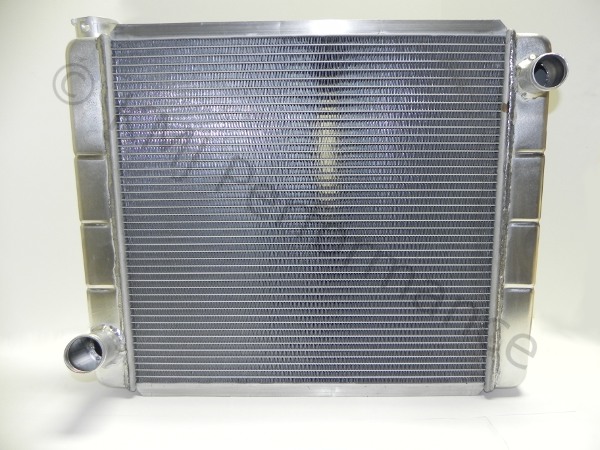

19" FORD TRIPLE PASS CONNECTIONS

Part #
Application
Fits Area
 Engine Driven
Fan Shroud
 Electric Fan  &
Shroud Kit
NOR 209694
 Ford
 24" x 19"
 Z40024 Z41035**
NOR 209695
 Ford 26" x 19"
 Z40021 Z41034**
NOR 209696
 Ford 28" x 19" Z40022 Z41032**
NOR 209697
 Ford 31" x 19" Z40023 Z41033**

**Electric fan shrouds may require a wiring harness and thermostatic control switch for correct operation.
(For tech support call 515-733-2890)
 http://www.kmjent.com/ebay/NOR/nor-tri/nor209694-1.jpg

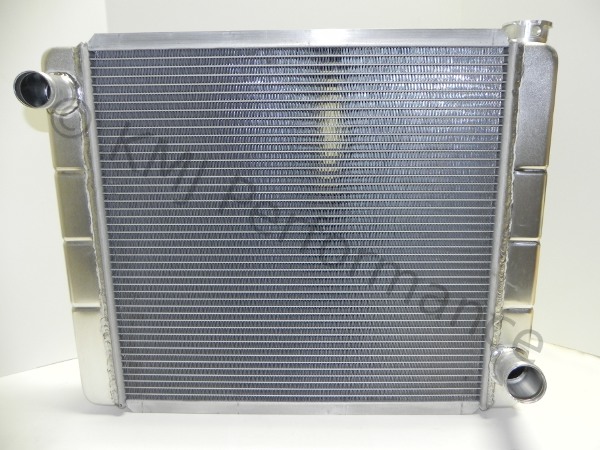

19" GM TRIPLE PASS CONNECTIONS

Part #
Application
Fits Area
 Engine Driven
Fan Shroud
 Electric Fan  &
Shroud Kit
NOR 209689 GM
 24" x 19"
 Z40024 Z41035**
NOR 209690
 GM 26" x 19"
 Z40021 Z41034**
NOR 209691
 GM 28" x 19" Z40022 Z41032**
NOR 209692
 GM 31" x 19" Z40023 Z41033**

**Electric fan shrouds may require a wiring harness and thermostatic control switch for correct operation.
(For tech support call 515-733-2890)
 http://www.kmjent.com/ebay/NOR/nor-tri/nor209689-1.jpg



16" Race Pro RADIATORS

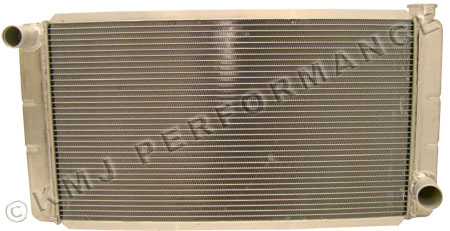

16" CHEVY/GM RACE PRO


Part #
Application
Fits Area		 Engine Driven
Fan Shroud		 Electric Fan  &
Shroud Kit
NOR 209657
 Chevy/GM 26" x 16" --
 --
NOR 209620 Chevy/GM
 28" x 16" Z40027 Z40081
NOR 209628 Chevy/GM 31" x 16" Z40028 Z40071

Inlet is 1 1/2" and the Outlet is 1 3/4" for All Race Applications
(For tech support call 515-733-2890)
 http://www.kmjent.com/images/NOR/NOR209628.jpg

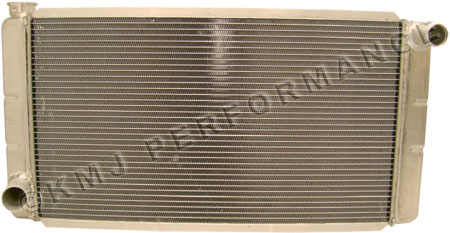

16" FORD/MOPAR RACE PRO


Part #
Application
Fits Area		 Engine Driven
Fan Shroud		 Electric Fan  &
Shroud Kit
NOR 209622 Ford/Mopar
 28" x 16" Z40027 Z40081
NOR 209630 Ford/Mopar 31" x 16" Z40028 Z40071

Inlet is 1 1/2" and the Outlet is 1 3/4" for All Race Applications
(For tech support call 515-733-2890)

 http://www.kmjent.com/images/NOR/NOR209622.jpg

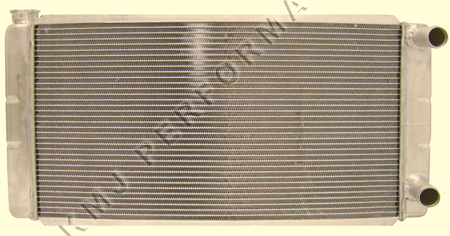

16" DOUBLE PASS RACE PRO


Part #
Application
Fits Area		 Engine Driven
Fan Shroud		 Electric Fan  &
Shroud Kit
NOR 209650 Connections on Left
 31" x 16" Z40028 Z40071
NOR 209651 Connections on Right
 31" x 16" Z40028 Z40071

* Great for Sandrail or Buggy applications!
 Inlet is 1 1/2" and the Outlet is 1 1/2" for All Race Applications
(For tech support call 515-733-2890)
 http://www.kmjent.com/images/NOR/NOR209651.jpg

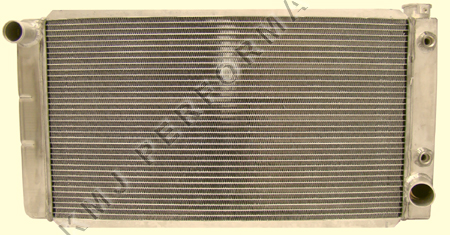

16" RACE PRO W/ENGINE OIL COOLER


Part #
Application
Fits Area		 Engine Driven
Fan Shroud		 Electric Fan  &
Shroud Kit
NOR 209621 Chevy/GM 28" x 16" Z40027 Z40081
NOR 209629 Chevy/GM 31" x 16" Z40028 Z40071
NOR 209623 Ford/Mopar 28" x 16" Z40027 Z40081
NOR 209631 Ford/Mopar 31" x 16" Z40028 Z40071

Inlet is 1 1/2" and the Outlet is 1 3/4" for All Race Applications
(For tech support call 515-733-2890)
 http://www.kmjent.com/images/NOR/NOR209629.jpg


SPECIALITY Race Pro RADIATORS

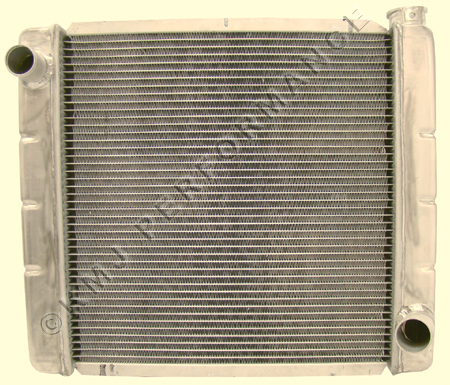

ALCOHOL RADIATOR

Lightweight design specially engineered for alcohol circle track race engines. 1" tube, 1 row design.

Part #
Application
Fits Area		 Engine Driven
Fan Shroud		 Electric Fan  &
Shroud Kit
NOR 209644 1 Row Alcohol Radiator
 22" x 19" Z40020 Z40073**
NOR 209645 1 Row Alcohol Radiator 24" x 19" Z40024 Z41035**
NOR 209646 1 Row Alcohol Radiator 28" x 19" Z40022 Z40002**

Inlet is 1 1/2" and the Outlet is 1 3/4" for All Applications
**Electric fan shrouds may require a wiring harness and thermostatic control switch for correct operation.
(For tech support call 515-733-2890)
 http://www.kmjent.com/images/NOR/NOR209644.jpg

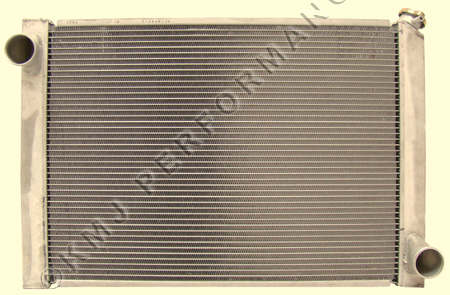

ULTRA LIGHT DRAG RACE RADIATOR

The lightest aluminum drag race radiator in the industry! Weighs only 6.5 lbs, cools up to 25% better than most competitive brands! 1 Row, 1 1/4" Tubes.

Part #
Application
Fits Area		 Engine Driven
Fan Shroud		 Electric Fan  &
Shroud Kit
NOR 209637 Weighs Only 61/2 lbs!
 24" x 16" --
 --

Inlet is 1 3/4" and the Outlet is 1 3/4"
(For tech support call 515-733-2890)
 http://www.kmjent.com/images/NOR/NOR209637.jpg

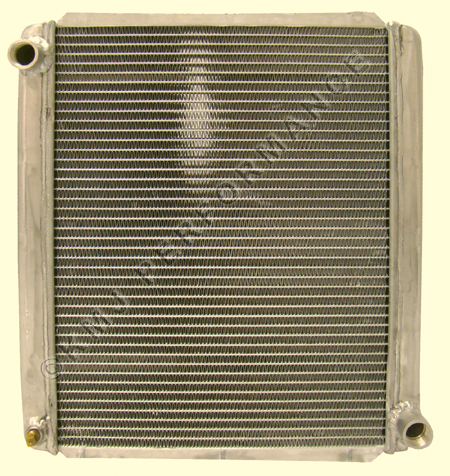

PRO STOCK RADIATOR


Part #
Application
Fits Area		 Engine Driven
Fan Shroud		 Electric Fan  &
Shroud Kit
NOR 209648 Pro-Stock - w/3/4 NPT Conn.
 16 3/4" x 19"
 --
 --

Front of radiator Inlet is 3/4" NPT and the Outlet is 3/4" NPT.
Back of radiator has 1/4" - 20 mounting boss (4).
(For tech support call 515-733-2890)
 http://www.kmjent.com/images/NOR/NOR209648.jpg

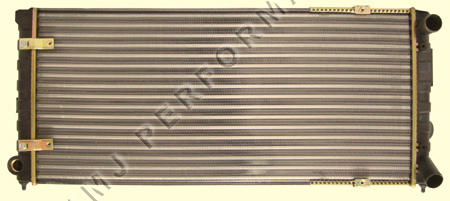

LIGHT WEIGHT VW STYLE DRAG RADIATOR


Part #
Application
Fits Area		 Engine Driven
Fan Shroud		 Electric Fan  &
Shroud Kit
NOR CR98
 Chevy/Ford/Chrysler
 13" x 31"
 --
 --
NOR CR604 Chevy/Ford/Chrysler 13" x 27 1/4" -- --

Inlet is 1 1/4" and the Outlet is 1 1/4" for All Applications
22mm x 1.5 Sensor Port
(For tech support call 515-733-2890)
 http://www.kmjent.com/images/NOR/NORCR98.jpg

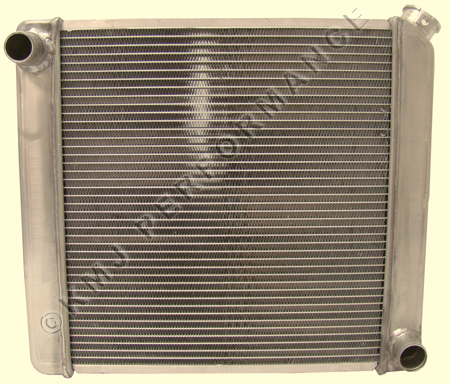

DRAG RACE RADIATOR


Part #
Application
Fits Area		 Engine Driven
Fan Shroud		 Electric Fan  &
Shroud Kit
NOR 209632 Drag Radiator
 21" x 19"
 -- --

209632 Inlet Dual neck is 1 5/16" - 1 1/2" and the Outlet is 1 1/2"
(For tech support call 515-733-2890)
 http://www.kmjent.com/images/NOR/NOR209632.jpg
