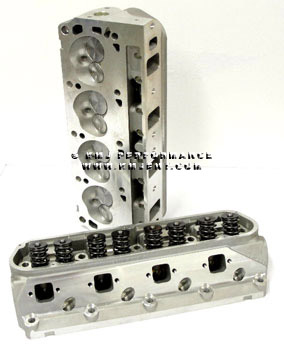

SBF COMPLETE 210CC 302 351W ALUMINUM CYLINDER HEADS

Small Block Ford Aluminum Cylinder Heads - Assembled

210cc Intake Port, 60cc Chamber

 New pair (2) of small block Ford ProComp aluminum cylinder heads. These heads are assembled with springs, valves, retainers, and locks installed. Comes with features normally found in heads costing much more, including:

• Hardened exhaust seats for unleaded fuel compatibility
• Bronze valve guides
• Manufactured with aircraft quality high grade aluminum alloy
• Multi-angle seat design for improved flow at low lifts
• Advanced port design for improved flow at all lifts
• Advanced combustion chamber design allows superb flame travel and burn
• Threaded accessory holes in ends of heads
• Thick deck to resist warping and allow for additional milling if desired

PC3038C Specs Intake Port Volume 210cc Exhaust Port Volume 70cc Combustion Chamber 60cc Intake Valve Size 2.02" Exhaust Valve Size 1.60" Valve Stem Dia. 11/32" Intake Port Size 1.30" W x 2.15" T Exhaust Port Size 1.40" W x 1.40" T Spring Pocket Dia. 1.650" Plug Angle Weight (per head) 23 lbs.
	Assemblies Include: Valve Material stainless steel Valve Type 1 piece, swirl polished Valve Length +.100" intake/exhaust (Chevy length) Valve Spring Dia. 1.450", dual Spring Pressure (closed)  140lbs @ 1.800" Spring Pressure (open)  370lbs @ 1.100" Coil Bind 0.970" Recommend Lift .550"-.600" (flat tappet cams) Retainers 4140 Chromoly steel Valve Locks hardened steel

  These heads are a great choice and at a great price, you will not find this kind of quality for the price we have them listed at. Perfect for everything from street, marine, and in any other performance/race application where a quality head at an affordable price is desired. A great upgrade from OEM factory heads. They should handle up to about 550HP in as-is form without much problem. Further gains can be had with gasket matching and porting techniques. Please note the intake port size, this is larger than most Ford intakes have so some port matching may be required.

 Aluminum material allows the benefit of higher compression ratios on the street compared to iron heads, not to mention how much weight they save compared to the factory cast iron ones!

We also carry these as a non assembled bare pair. Check out our store for more cool products including other head selections including the 190cc port version!
