SBC CHEVY High Rise Aluminum Intake Manifold 350 400

39%
SBC CHEVY High Rise Aluminum Intake Manifold 350 400
PCE PC2031

FREE SHIPPING!
to contiguous 48 United States Only

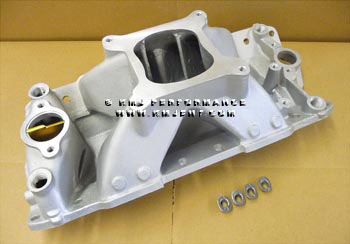

Small Block Chevy High Rise Aluminum Intake

3000-7500+ RPM



Special Purchase!!

New high rise single plane intake for small block Chevy. Big power for mid to upper RPM ranges! Ideal for high performance and race applications - big savings when you don't need to pay for the name!


 These intakes are produced from steel molds to reduce core shift, have all the major features found on the expensive ones such as 4 corner water outlets and nitrous bosses, and the best part - the price!





KMJ 2031 KMJ 2031



 Intake works with 283-400 small blocks up to 1995. Includes special adapter bushings for the middle holes on the '87 to '95 heads. Will not fit the newer Vortec heads. For use with square bore style carbs. Provides standard bosses and tapped holes for street accessories such as A/C and alternator brackets. No provision for manual choke or exhaust crossover. Not EGR equipped.





Manifold Specifications:

Part
Number
RPM
Range
Intake Port
Dimensions
Manifold
Height
2031 3000 - 7500+ 1.80" x   1.11" (1) 6.06"

NOTE (1) - port is intentionally left small to allow for porting/gasket matching.

Features:

  • 360° single plane high rise design for outstanding power from 3000 to 7500+ RPM
  • Cast-in bosses on intake runners, can be drilled and tapped for use with nitrous
  • Square bore carb bolt pattern for the Holley 4150/4160 style carburetor
  • Ideal port position - allows custom porting for maximum power
  • Dual distributor hold-down provisions for extra protection against distributor rotation
  • Unique removeable water flow divider to eliminate the thermostat in racing applications
  • Four corner water outlets
  • Accepts late-model water neck, air-conditioning, alternator, and HEI brackets
  • Special adapter bushings allows manifold to fit 1987 to 1995 engines



Polished version also available in our store!

KMJ 2030



Includes special adapter bushings for '87-'95 heads





KMJ 2031

Details
Part Number PCE PC2031
Condition: New
Application SMALL BLOCK CHEVY
Material Aluminum
Finish Satin
Bolt Pattern Standard Flange
Plenum Single

Retail: $229.99
Your Price: $139.99
FREE SHIPPING to contiguous 48 United States
