SBC CHEVY Dual Plane Aluminum Intake Manifold 55-95 350

Small Block Chevy Dual Plane Aluminum Intake

Idle-5500 RPM

Special Purchase!!

New aluminum dual plane intake for small block Chevy. 180 ⁰ design, big power over a wide RPM range. Ideal for the daily driver and performance street applications, will produce power in the lower RPM range and not kill your bottom end like a single plane would. Big savings when you don't need to pay for the name!

 This is a blow out sale on these intakes. We obtained a special purchase on these intakes and a major manifold producer is feeling the heat. They do not like us selling these intakes when their comparable intake sells for much more!

 These intakes are produced from steel molds to reduce core shift, have all the major features found on the expensive ones, and the best part - the price!

1 Intake works with 283-400 small blocks up to 1995. Includes special adapter bushings for the middle holes on the '87 to '95 heads. Does not fit the newer Vortec heads. Can be used with either spread bore or square bore style carbs. Provides standard bosses and tapped holes for street accessories such as A/C and alternator brackets. Non EGR.

Manifold Specifications: Part Number RPM Range Intake Port Dimensions Manifold Height 2001 Idle - 5500 1.90" x   1.19" (1) 4.05" NOTE (1) - port is intentionally left slightly small to allow for porting/gasket matching if desired

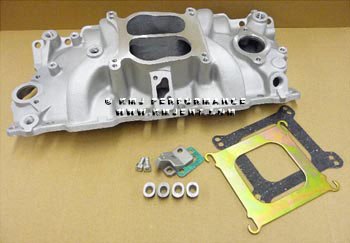

Includes special adapter bushings for '87-'95 heads

Features: 180° dual plane design for outstanding power from idle to 5500 RPM Dual carb pattern, accepts spread bore such as Quadrajets and includes adapter for use with square bore carbs like Holley Provision for exhaust heated choke and crossover for street applications Ideal port position - allows custom porting for maximum power Dual distributor hold-down provisions for extra protection against distributor rotation Four corner water outlets Accepts late-model water neck, air-conditioning, alternator, and HEI brackets Special adapter bushings allows manifold to fit 1987 to 1995 engines

Polished version also available in our store!
