SBC Chevy Aluminum Heads Bare 210cc 2.02 Straight Plug
21%
SBC Chevy Aluminum Heads Bare 210cc 2.02 Straight Plug
PCE PC3003S

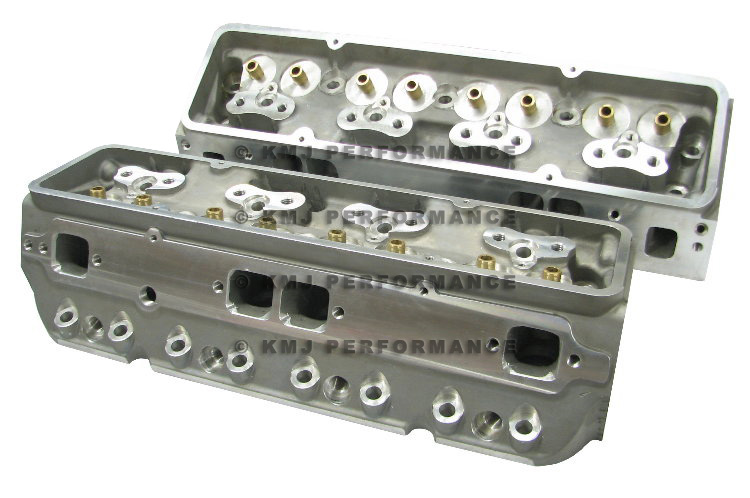

Small Block Chevy Bare Aluminum Cylinder Head

210cc Intake Port, 64cc Chamber, Straight Plug, Pair



New pair of small block Chevy aluminum cylinder heads. Comes with features normally found in heads costing much more, including:
  • Bronze valve guides
  • Manufactured with aircraft quality high grade aluminum alloy
  • Multi-angle seat design for improved flow at low lifts
  • Advanced port design for improved flow at all lifts
  • Advanced combustion chamber design allows superb flame travel and burn
  • Additional pushrod clearance machined along outside port walls
  • Can use either perimeter bolt pattern or centerbolt valve covers
  • Threaded accessory holes in ends of heads
  • Retains stock 23 degree angle and intake/exhaust bolt locations
  • Does not require offset rocker arms




 These heads will work for all small blocks including 400s (when not using steam holes, or when drilled by a qualified machinest for steam holes). Has the earlier style intake bolt pattern (pre '87) that had all bolts going in at an angle.

They will accept either 3/8" or 7/16" studs. You can also use standard off the shelf items such as pistons, rocker arms, guideplates, and stud girdles.

Aluminum material allows the benefit of higher compression ratios on the street compared to iron heads, not to mention that it saves nearly 20 lbs per head verses the factory ones!

These are a great choice and at a great price. Perfect for performance/race applications where a quality head at an affordable price is desired. 190cc intake port works well out of the box on engines with around 400-500 projected HP. Further gains can be had with gasket matching and porting techniques.
*NOTE: Due to the port size and location, most dual-plane intake manifolds will not cover the intake port completely.  You will require a large runner intake and corresponding intake gasket.
PC3003A Bare Head Specifications:

Intake Port Volume

210cc

Combustion Chamber

64cc

Intake Valve Size

2.02"

Exhaust Valve Size

1.60"

Valve Stem Dia.

11/32"

Intake Port Size

1.22" W x 2.2" T

Exhaust Port Size

1.4" W x 1.4" T

Max Spring Dia.

1.550"

Exhaust Crossover

No

Plug

Straight

Weight (per head - bare)

20 lbs.


Details
Part Number PCE PC3003S
Condition: New
Application SMALL BLOCK CHEVY
Material Aluminum

Retail: $539.99
Your Price: $429.00
