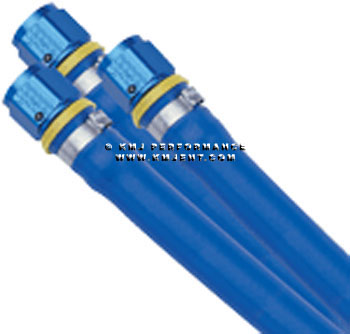

Parker Push-Lok is the performance standard for a multitude of applications. It is manufactured to the same rigorous standards as all of Parker’s products. This hose performs well when used within the temperature and pressure parameters that it was designed for.
-
250 psi. maximum pressure allows for most oil, water and fuel applications.
-
Synthetic rubber tube is covered with one layer of textile braid, combined with an outer layer of synthetic colored rubber.
-
Temperature range –40° F to +212° F.
-
Sized in fractions and may be used with any push-on style fitting.
Fragola’s Push-Lite Hose Ends work well with this type of hose.
AN
SIZE | NOM.
I.D. | Bulk
PER FT. | 20 FT.
ROLL |
| -4 | 1/4" | 860004 | 862004 |
| -6 | 3/8" | 860006 | 862006 |
| -8 | 1/2" | 860008 | 862008 |
| -10 | 5/8" | 860010 | 862010 |
| -12 | 3/4" | 860012 | 862012 |
Tech Tip: To ease the installation of any push on hose end, first dip the end of the hose in boiling water to soften it slightly (a heat gun also works well). Clamp the hose in a vise and oil the barbs with common motor oil. Push the hose over the barbs with one smooth movement.
