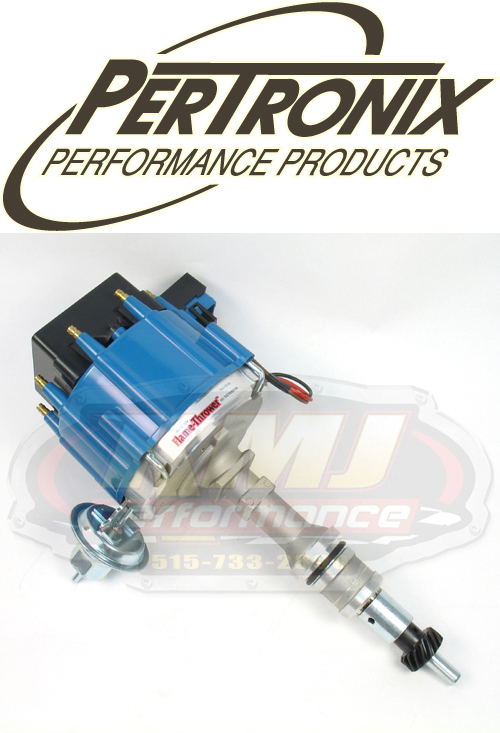

Flame-Thrower Ford 289 302 Small Block Windsor Street Strip HEI Distributor Blue

Flame-Thrower Ford 289 302 Small Block Windsor Street Strip HEI Distributor Blue
PTX D1352





Flame-Thrower Street/Strip HEI Distributor;

Ford 221 260 289 302 (Excludes 1984 and up 5.0L)

with Vacuum Advance, Magnetic Pickup, and Blue Male/HEI Cap

PerTronixs Flame-Thrower Street/Strip HEI distributors will produce 67 percent more energy in the coil, and deliver twice the energy across the spark gap. Plus, they deliver misfire-free performance up to a minimum of 7,500 RPM, a 3,000 RPM improvement over most original HEIs. Each distributor uses a new aluminum housing, cast and machined from a strong but lightweight A384 alloy. High-quality bronze sintered bushings are installed, aligned, and bored for accuracy and extended mileage use. Features include an adjustable vacuum advance, a high-performance mechanical curve kit, aluminum housing, a high dielectric strength cap with solid brass terminals, a balanced rotor, and a centerless-ground shaft.

  • New Lightweight Aluminum Alloy Housing
  • Aligned and Honed High Quality Bronze Sintered Bushings for Reduced Friction and Provides Concentric Operation
  • Distributor Gear is Ground to Exact Tolerances for Tighter Mesh with Camshaft
  • High Dielectric Strength Cap with Brass Terminals and Low Resistance Center Coil Brush
  • Balanced Rotor with Nylon Screws Prevent Arcing and Reduce Vibration at High RPMs
  • Adjustable Vacuum Advance Canister and High Performance Advance Curve
  • Precision Machined Chromoly Advance Weights and Center Plate Eliminate Erratic Timing
  • Meets Stringent Automobile Susceptibility, Vibration, and Shock Requirements
  • Legal in All 50 States and Canada (C.A.R.B E.O. #D-57-23)
  • Limited One Year Warranty

Brand PerTronix
Manufacturers Part Number D1352
Part Type Distributor
Computer-Controlled Compatible No
Trigger Style Magnetic
Advance Type Vacuum Advance
Cap Style Male/HEI
Mechanical Tach Drive No
Slip Collar No
Gear Material Iron
Ignition Box Required No
Distributor Rotor Rotation Counter Clockwise
Distributor Cap Color Blue
Housing Material Cast Aluminum
Housing Finish Machine Polished
Notes Excl. 84 later 5.0L
Marine Use No



Pertronix Plug N Play Billet Distributors

Plug n Play billet distributors are designed for maximum ignition performance at a price you can afford.  Replace your outdated points, electronic distributor, or bulky HEIs with this performance proven system.  Simply install the distributor in the engine, connect two wires, and start it up!

 * Please note that distributors with Ignitor III modules are NOT compatible with capacitive discharge boxes as they already incorporate a multiple spark style ignition. If using a CD ignition box, we offer Pertronix Plug N Play distributors with Ignitor II modules. *

For even more performance, consider adding one of Pertronixs compatible Flame-Thrower coils for increased spark energy and higher RPM potential!



Features:

  • Precision CNC machined 6061-T6 billet aluminum housings are lightweight yet offer maximum strength.
  • Each billet distributor is hand polished and buffed to a high luster.
  • Tempered distributor shaft has low torsion displacement for accurate timing and extended operational life.
  • Upper ball bearing and extra long oil impregnated bronze lower bushing work together to reduce friction and provide shaft and advance mechanism stability reducing high RPM vibration.
  • Precision stamped and balanced mechanical advance weights eliminate erratic timing.
  • Adjustable mechanical advance with proprietary limiting function permits multiple settings. Distributors are factory set with a performance advance curve and are provided with additional springs for custom advance curves.
  • High dielectric strength cap with male or female brass terminals and premium rotor with brass contact.
  • Legal in all 50 states and Canada (C.A.R.B.  E.O.  #D-57-23) *

* Non-vacuum advance distributors do not have an E.O. number and are not legal for sale or use on pollution controlled motor vehicles.



* Please contact the manfacturer for specific fitment related questions. *



All PerTronix products are guaranteed to the original purchaser, to be free of defects in materials and workmanship.
Ignitor, Ignitor II, Ignitor III - 30 months.
Industrial Distributor - 90 days mechanical / 30 months Ignitor
Flame-Thrower Coils - 90 days
Flame-Thrower Spark Plug Wires - Lifetime
Flame-Thrower HEI Distributors and Component Parts - Limited 1 Year
Flame-Thrower Plug n’ Play Billet Distributors - 1 Year Mechanical / 30 months module
Second Strike & Digital Rev Limiter-Limited 1 Year
***** LIMITED WARRANTY *****
PerTronix, Inc. warrants to the original Purchaser that its products shall be free from defects in material and workmanship for a period, as specified above, from the first day of use in the Purchasers engine.
If within the period of the foregoing warranty PerTronix finds, after inspection, that the product or any component thereof is defective, PerTronix will, at its option, repair such product or component or replace them with identical or similar parts PROVIDED that within such period Purchaser:
  1. Promptly notifies PerTronix in writing of such defect.
  2. Delivers the defective product or component to PerTronix (Attn: Warranty) with proof of purchase date; and
  3. Has installed and used the product in a normal and proper manner consistent with PerTronix printed instructions.  The foregoing limited warranty is exclusive and in lieu of all other warranties, whether express or implied, including any implied warranty or merchantability or fitness for a particular purpose.  The furnishing of a repair or replacement components shall constitute the sole remedy of purchaser and the sole liability of PerTronix whether on warranty, contract or for negligence, and in no event will PerTronix be liable for money damages whether direct or consequential.





Details
Manufacturer PerTronix Ignition
Part Number PTX D1352
Condition: New
UPC 694342010232
