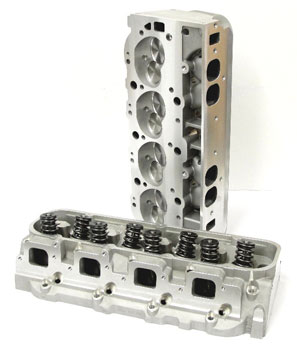

BBC COMPLETE 300CC OVAL PORT ALUMINUM CYLINDER HEADS

Big Block Chevy Aluminum Cylinder Heads - Assembled

300cc Intake Port, 119cc Chamber, Oval Port

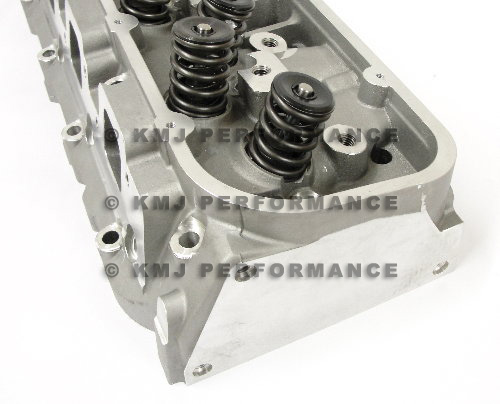

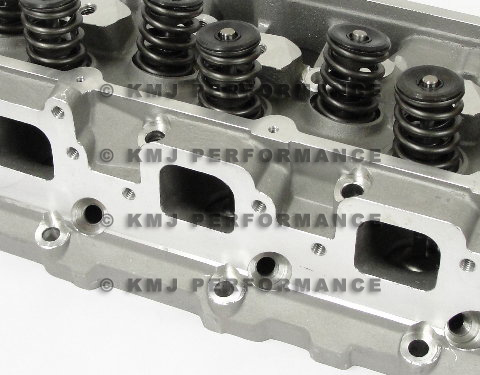

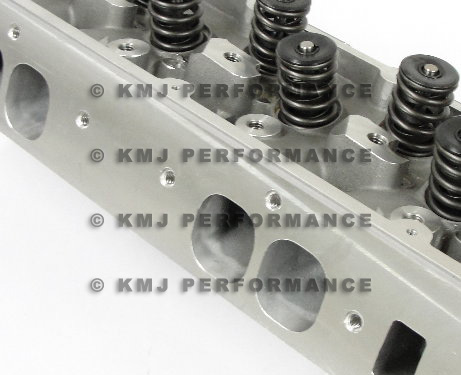

Pair (2) of big block Chevy ProComp aluminum cylinder heads. These heads are assembled with springs, valves, retainers, and locks installed. Comes with features normally found in heads costing much more, including:

• Hardened exhaust seats for unleaded fuel compatibility
• Bronze valve guides
• Manufactured with aircraft quality high grade aluminum alloy
• Multi-angle seat design for improved flow at low lifts
• Advanced port design for improved flow at all lifts
• Advanced combustion chamber design allows superb flame travel and burn
• Additional pushrod clearance machined along outside port walls
• Threaded accessory holes in ends of heads
• Retains stock intake/exhaust bolt locations
• Thick deck to resist warping and allow for additional milling if desired

Intake Port Volume 300cc (oval) Combustion Chamber 119cc Intake Valve Size 2.250" Exhaust Valve Size 1.880" Valve Stem Dia. 11/32" Intake Port Size 1.8" W x 1.95" T Exhaust Port Size 1.9" W x 1.65" T Spring Pocket Dia. 1.730" Exhaust Crossover No Plug Angle Weight (per head - bare) 28 lbs.     Flow Numbers Intake Flow Exhaust Flow .100 .200 .300 .400 .500 .600 .700 74.3 166.11 245.36 308.05 339.84 360.43 374.31 .100 .200 .300 .400 .500 .600 .700 62 118 160 195 229 248 265

Assemblies Include: Valve Material stainless steel Valve Type 1 piece, swirl polished Valve Length +.250" intake, +.100" exhaust Valve Spring Dia. 1.525", single Spring Pressure (closed)  140lbs @ 1.900" Spring Pressure (open)  380lbs @ 1.200" Coil Bind 1.160" Recommend Lift .600"-.650" (flat tappet cams) Retainers 4140 Chromoly steel Valve Locks hardened steel

  These heads are a great choice and at a great price, you will not find this kind of quality for the price we have them listed at. Perfect for everything from street, marine, and in any other performance/race application where a quality head at an affordable price is desired. A great upgrade from OEM factory heads. These heads are a better alternative compared to the rectangle port version if you aren't runnning a big stroker engine or all out race application, you'll get much better low end performance. They should handle up to about 600HP in as-is form without much problem. Further gains can be had with gasket matching and porting techniques.

 Aluminum material allows the benefit of higher compression ratios on the street compared to iron heads, not to mention how much weight they save compared to the factory cast iron ones! These ProComp big block heads have been tried and tested for a few years now with excellent results.

We also carry these as a non assembled bare pair. Check out our store for more cool products including other head selections including the rectangle port version!
