Assault Racing Bare SBC Small Block Chevy Aluminum Cylinder Heads Straight Plug 350 383 400
Assault Racing Bare SBC Small Block Chevy Aluminum Cylinder Heads Straight Plug 350 383 400
ARC SBC20064S

FREE SHIPPING!
to contiguous 48 United States Only

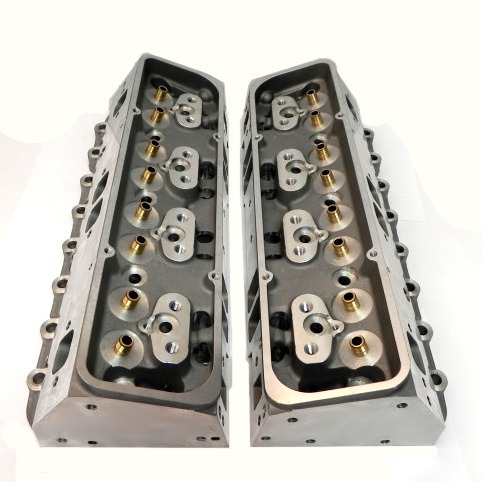

Bare Small Block Chevy Aluminum Cylinder Heads

200cc Intake Port, 64cc Chamber, 2.02/1.6 Valve, Straight Plug



New pair of Assault Racing Heads.

These heads are bare and ready to assemble.

  • Hardened exhaust seats for unleaded fuel compatibility
  • Bronze valve guides
  • Manufactured with aircraft quality high grade aluminum alloy
  • Multi-angle seat design for improved flow at low lifts
  • Advanced port design for improved flow at all lifts
  • Advanced combustion chamber design allows superb flame travel and burn
  • Additional pushrod clearance machined along outside port walls
  • Can use either early or late (Vortec) intakes
  • Can use either perimeter bolt pattern or centerbolt valve covers
  • Threaded accessory holes in ends of heads
  • Retains stock 23 degree angle and intake/exhaust bolt locations
  • Thick deck to resist warping and allow for additional milling if desired
  • Does not require offset rocker arms

 These heads will work for all small blocks including 400s (no steam holes). Heads are drilled for both the earlier style intake bolt pattern (pre '87) that had all bolts going in at an angle and the newer Vortec style that has 4 on each side going straight down in.


Intake Port Volume

200cc

Combustion Chamber

64cc

Intake Valve Size

2.02"

Exhaust Valve Size

1.60"

Valve Stem Dia.

11/32"

Intake Port Size

1.22" W x 2.20" T*

Exhaust Port Size

1.5" W x 1.4" T

Max Spring Dia.

1.625"

Exhaust Crossover

No

Plug

Straight

Weight (per head)

19 lbs.

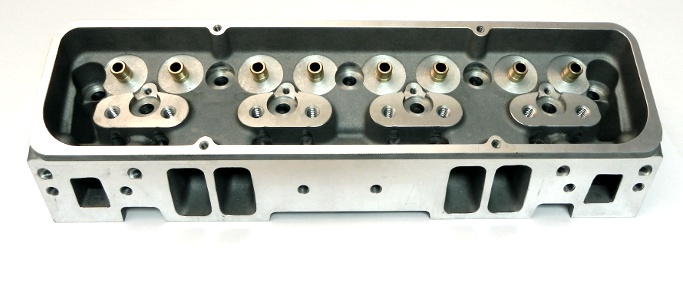

http://kmjent.com/ebay/RPC/kmj_s4400-3.jpg

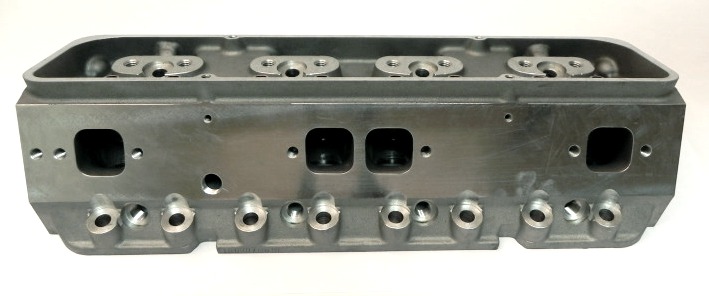

http://kmjent.com/ebay/RPC/kmj_s4400-4.jpg

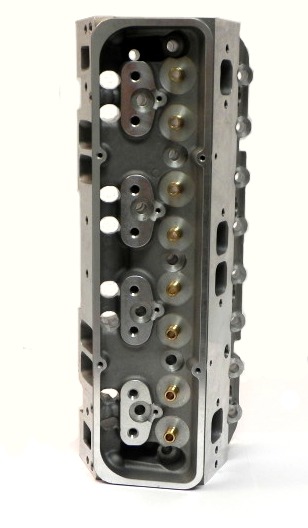

http://kmjent.com/ebay/RPC/kmj_s4400-5.jpg

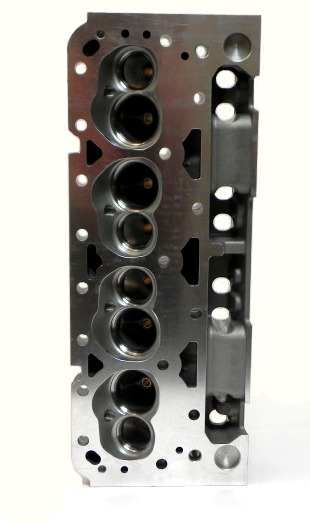

http://kmjent.com/ebay/RPC/kmj_s4400-6.jpg

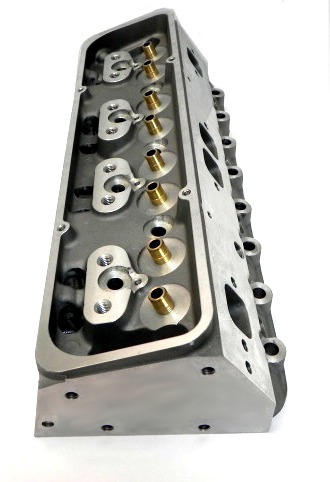

http://kmjent.com/ebay/RPC/kmj_s4400-7.jpg

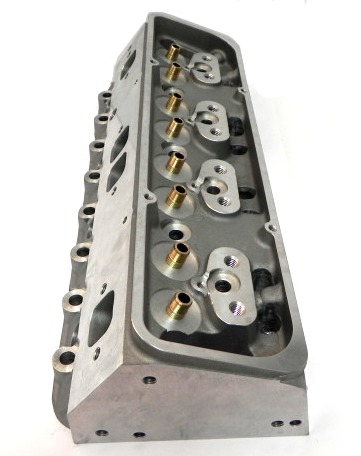

http://kmjent.com/ebay/RPC/kmj_s4400-8.jpg
Details
Manufacturer Assault Racing
Part Number ARC SBC20064S
Condition: New
Application SMALL BLOCK CHEVY
Material Aluminum

Your Price: $499.99
FREE SHIPPING to contiguous 48 United States
